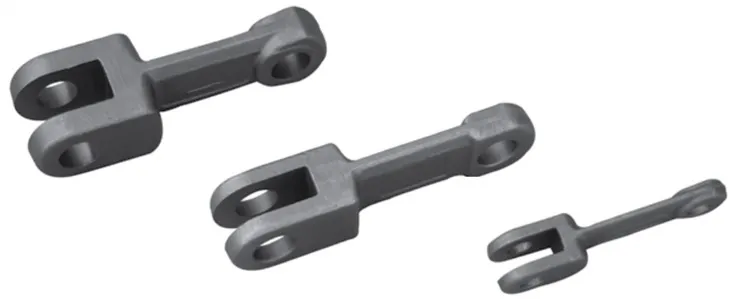

Najvažniji prilog oddrop-kovani lanacje strugač. Zavaren je na lancu koji bi mogao prenijeti stvari. Na strugaču se nalaze dvije rupe koje se koriste za spajanje gumenog nastavka kako bi se izbjeglo oštećenje strugača. Za materijal obično nudimo 20CrMni (veza), 40Cr (pin) i Q235 (strugač i zračna spojnica).
Drawing of Scraper Drop Forging Chain
Dimensions of Scraper Drop Forging Chain for reference
| Lanac Ne. | Nagib | Dimenzije | Ultimativno snagu | Težina | |||||||
| A | B | C | D | E | T | 20CrMnTi | 40Cr | 42CrMo | |||
| mm | mm | mm | mm | mm | mm | mm | KN | KN | KN | kg/m | |
| 10160B | 101.6 | 24.0 | 8.0 | 36.0 | 14.0 | 9.0 | 6.0 | 90.0 | 100.0 | 130.0 | 3.5 |
| 10160.0 | 101.6 | 30.0 | 13.0 | 36.0 | 14.0 | 14.0 | 9.0 | 120.0 | 150.0 | 200.0 | 3.8 |
| 102.0 | 102.0 | 28.0 | 12.0 | 36.0 | 14.0 | 13.0 | 8.0 | 110.0 | 140.0 | 190.0 | 3.7 |
| 102F | 102.0 | 33.5 | 14.0 | 38.0 | 14.0 | 15.0 | 10.0 | 150.0 | 180.0 | 230.0 | 4.0 |
| 125.0 | 125.0 | 36.0 | 15.0 | 36.0 | 16.0 | 16.0 | 10.0 | 180.0 | 210.0 | 260.0 | 4.8 |
| 14218.0 | 142.0 | 42.0 | 19.0 | 50.0 | 25.0 | 20.0 | 12.0 | 270.0 | 350.0 | 440.0 | 10.3 |
| 14226.0 | 142.0 | 62.0 | 28.0 | 50.0 | 25.0 | 30.0 | 15.0 | 370.0 | 450.0 | 550.0 | 14.7 |
| 150.0 | 150.0 | 42.0 | 16.0 | 48.0 | 25.0 | 18.0 | 12.0 | 230.0 | 280.0 | 350.0 | 9.9 |
| 160.0 | 160.0 | 43.0 | 20.0 | 50.0 | 25.0 | 22.0 | 12.0 | 270.0 | 350.0 | 440.0 | 9.6 |
| 160F | 160.0 | 60.0 | 29.0 | 50.0 | 25.0 | 30.0 | 24.0 | 380.0 | 460.0 | 560.0 | 14.7 |
| 200.0 | 200.0 | 56.0 | 25.5 | 50.0 | 25.0 | 27.0 | 16.0 | 350.0 | 430.0 | 530.0 | 10.7 |
| 200F | 200.0 | 70.0 | 30.0 | 70.0 | 32.0 | 32.0 | 25.0 | 500.0 | 600.0 | 750.0 | 30.7 |
| 216.0 | 216.0 | 58.0 | 25.0 | 72.0 | 35.0 | 27.0 | 18.0 | 480.0 | 570.0 | 700.0 | 21.3 |
| 260.0 | 260.0 | 70.0 | 30.0 | 75.0 | 32.0 | 32.0 | 20.0 | 600.0 | 720.0 | 900.0 | 20.7 |
GZG Scraper Drop Forging Chain Dijeljenje narudžbe
1. Raspitivanje i citiranje (9. studenog 2021.)
2. Potvrda izvlačenja (12. studenog 2021.)
3. Pregovori o vremenu isporuke (12. studenog 2021.)
4. Detaljna rasprava i potpisivanje PI (15. studenog 2021.)
5. Potvrda plaćanja (22. studenog 2021.)
6. Organizirajte proizvodnju (23. studenog 2021.)
7. Gotov proizvod i pakiranje (7. siječnja 2022.)
Please let us know if you need any help during your inquiry, we are glad to help. And don't worry about our quality, we yet receive any complaint from our clients, GZG Transmission is a trustworthy business partner.
