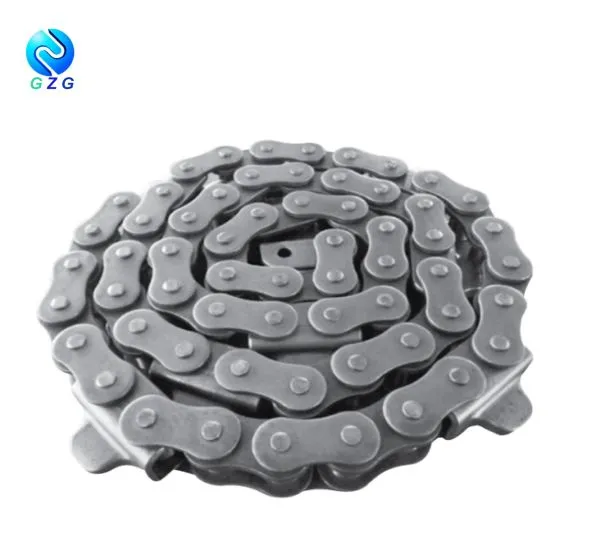

Nudimo 3 vrstePogonski lanac od kovanog željeza, X348, X458, X678. It could work with drop-forged chain as an auxiliary tool. The outer link of drop-forged chain and the attachment teeth are engaged which could push whole drop-forged chain to move.
Find dimensions of Ovdje je kovani pogonski lanac (X348 X458 X678)
 | |||||||||||||||
 | |||||||||||||||
| Lanac Ne. | Dimenzije | ||||||||||||||
| P | A | C | B | H | E | F | G | J | K | L | T | S | D | M | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 50.8 | 304.8 | 41.4 | 48 | 41.2 | 15.9 | 25.4 | 28.6 | 45.2 | 31.55 | 70.79 | 6.35 | 6.5 | 14.27 | 28.6 |
| X458 | 50.8 | 203.2 | 41.4 | 48 | 44.4 | 25.4 | 25.4 | 35 | 45.2 | 31.55 | 70.79 | 6.35 | 6.5 | 14.27 | 28.6 |
| X678 | 50.8 | 304.8 | 41.4 | 48 | 54 | 27 | 25.4 | 50.8 | 45.2 | 31.55 | 70.79 | 6.35 | 6.5 | 14.27 | 28.6 |
Kako nas klijenti pronalaze?
Clients could find us on Carton fair or other industry exhibitions, or search GZG web online to contact us.
Sajam kartona
Obavijestite nas da tražite dijelove prijenosa kako bi vam GZG uskoro mogao pomoći.
Popularni tagovi: željezni kovani pogonski lanac x348 x458 x678, Kina, proizvođači, dobavljači, tvornica, Lanac kratkih tona, Dizajn lanca, Spajanje lanca, ugradbeni lanac, klirens lanca, Lanac protiv kapljice protiv rušenja
